Cougar 52

PackGen’s Cougar CATainers are the first and only collapsible composite catalyst containers designed and approved specifically for storage and transportation of both fresh and spent catalyst. These containers are approved for most types of self-heating catalyst, including precious metals, wet dumped material and more.

The Cougar 52 has a weight capacity up to 3,000 lbs of PG-I, 4,000 lbs of PG-II, and 6,000 lbs of PG-III materials, yet they are lightweight and collapsible, saving you space, effort, and money.
(Label design may vary)

REQUEST A QUOTE
SPECIFICATIONS
BENEFITS
PHOTOS/VIDEO

SPECIFICATIONS

UN Classification
11HG2W
Dimensions
41” x 41” x 56”
Container Weight
73 lbs
Capacity
52 cu ft
Lab Pack Exempt
Optional
Lift Straps
Yes
Exterior
UV treated high density woven polypropylene
Liner
Preinstalled 6-mil polyethylene high-temp/low-permeation co-extrusion
Liner Opening
Choice of open, transfer chute, or spin lid top configuration
Pallet Size
45” x 45” (Required for rating - sold separately)
Pallet Quantity
14
Approved To Ship
Solids: PG-I: 3000 lb, PG-II: 4000 lb, PG-III 6000 lb

BENEFITS

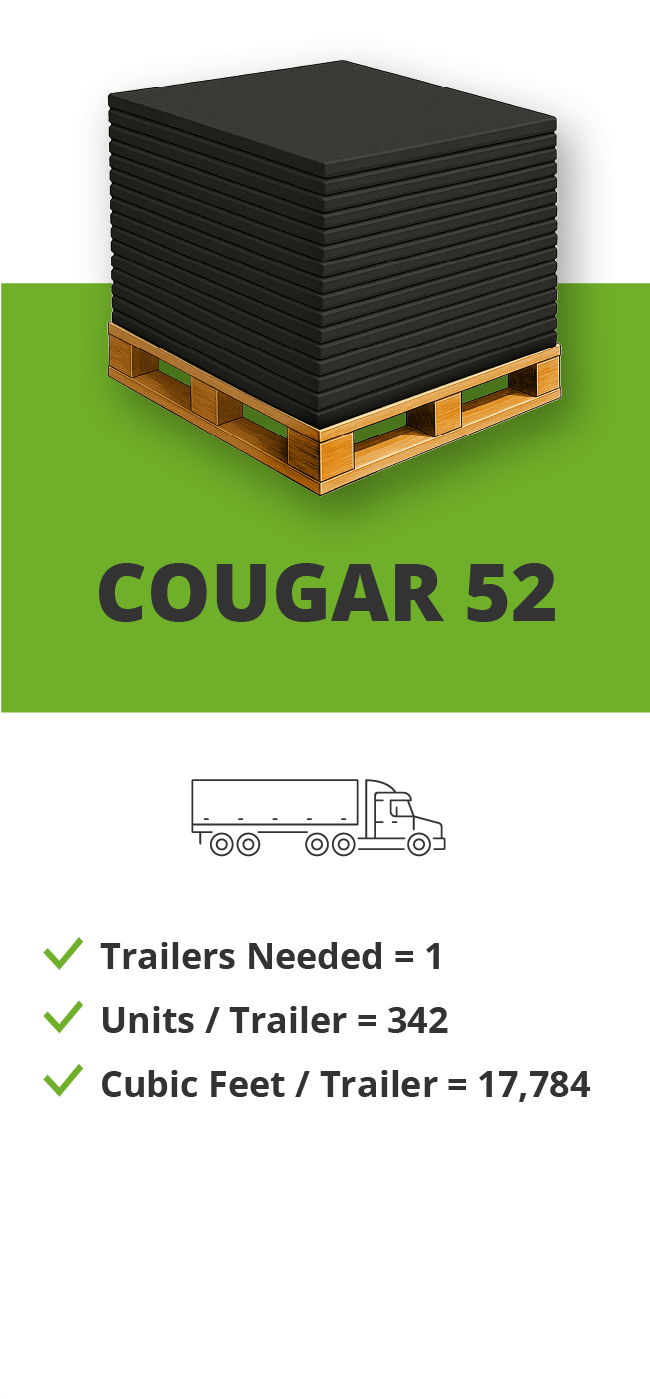

  • Allows for 30% greater shipped weight per trailer/container than flow bins and drums
  • Standard liner system and spin cover keeps oxygen out and handles fill temps up to 212 degrees F
  • Continuous fiberboard sleeve scored on two opposing sides provides greater stacking and allows the container to knocked down and lay flat
  • UV Treated Polypropylene Exterior reinforced lid allows for outside storage in all weather conditions
  • Stacks up to two high to save on finished product storage space
  • Reduces packaging and transportation costs up to 48% due to light weight and collapsible design
  • Green Benefit: the collapsing design reduces greenhouse pollutants and congestion on the road by over 22%
  • Separate reinforced lid with generous overlap ensures maximum coverage
  • SureFit reinforcing truss system eliminates side wall bulge and offers outstanding stackability

PHOTOS/VIDEO

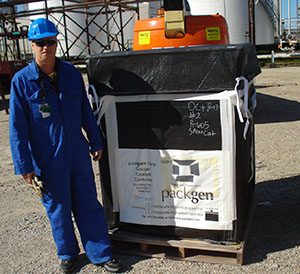

Full Cougar 52 – Spent Catalyst

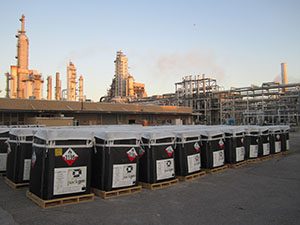

Full Cougars Ready for Transport

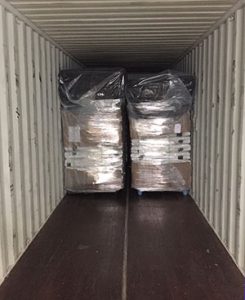

Empty Cougars Arrive 14 Per Pallet

CLICK HERE TO WATCH COUGAR SET UP VIDEO
