XTRACTOR
XTRACTOR

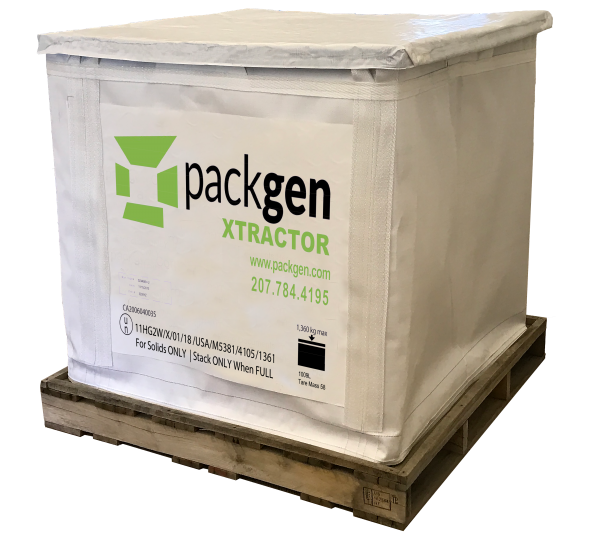

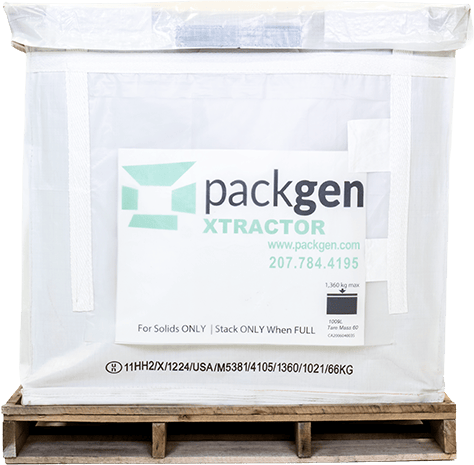

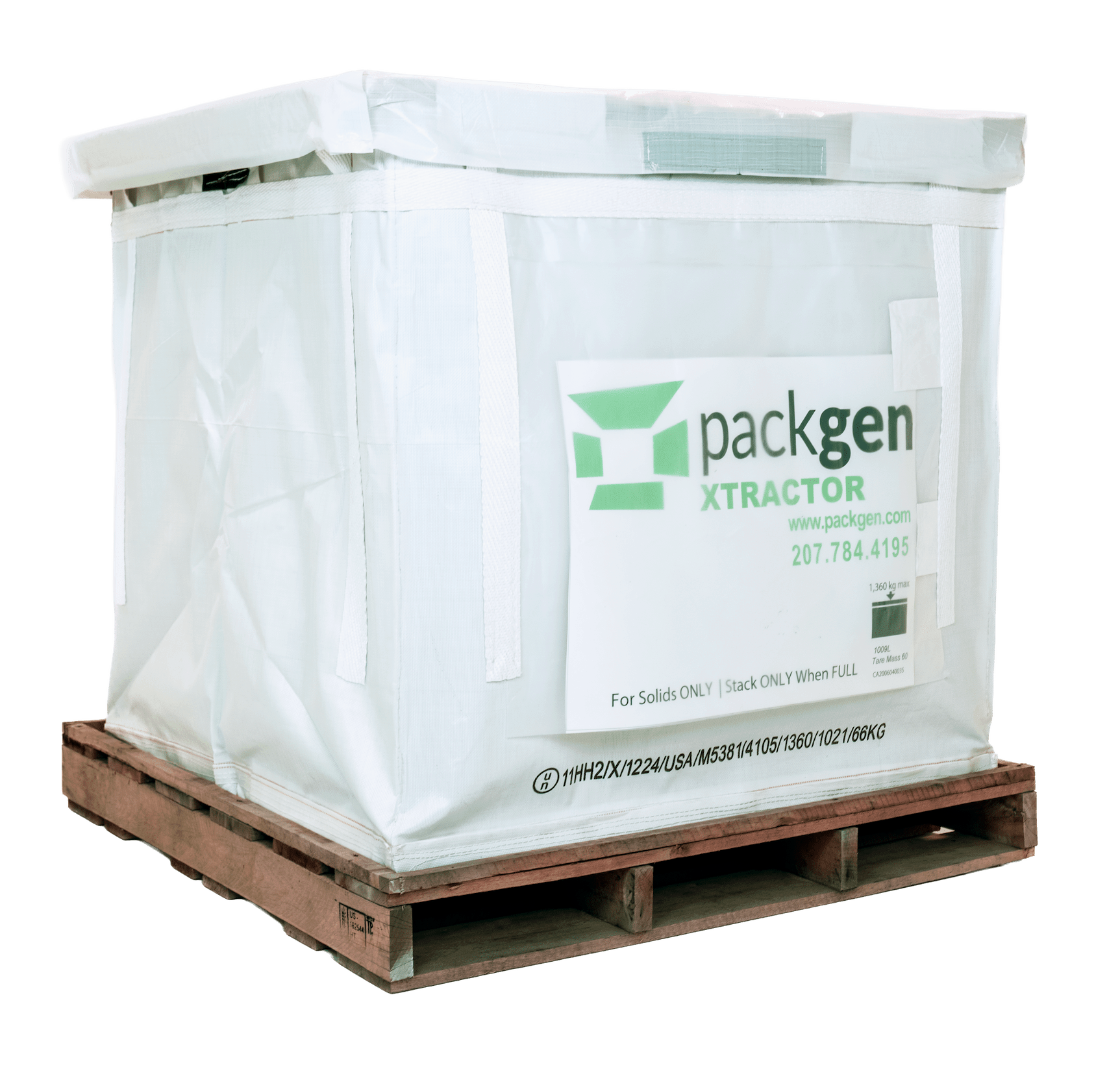

The PackGen Xtractor is our next generation container for highly hazardous solid chemicals. The Xtractor’s durable design handles dense/heavy material while maintaining its shape, and allows for stacking up to four high.
(Label design may vary)
XTRACTOR Specifications
UN Classification
11HH2
Dimensions
42.5” x 42.5” x 38”
Container Weight
57.32 lbs
Cover Weight
11.99 lbs
Liner Weight
3.14 lbs

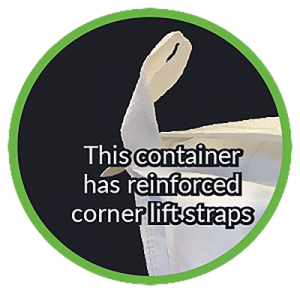

Lift Straps
Yes
Pallet Size
45” x 45” (required)
Pallet Quantity
15
Capacity
approx 40 cu ft
Exterior
UV treated high density woven polypropylene
Liner
Low density polyethelene
Approved To Ship
Most PG-I, PG-II & III Solid Materials, IBC Codes IB6, IB7, IB8
(refer to your SDS Special Provisions Section for exceptions)
Max Gross Weight
X – 3000 lbs
Y – 4500 lbs
Z – 6750 lbs
Downloadable PDF
XTRACTOR Benefits
- Fully integrated liner and container components allow for easy handling with no exposure potential vs. existing bag box applications
- Minimal Storage Space Requirement. Reduces freight and warehouse cost up to 1200% compared to plywood boxes and metal totes
- Custom sized/high temperature liners allow for worry free transition from existing packaging
- Separate reinforced cover allows for consistent top surface and overlapping closure to ensure entire coverage
