COUGAR 40
COUGAR 40

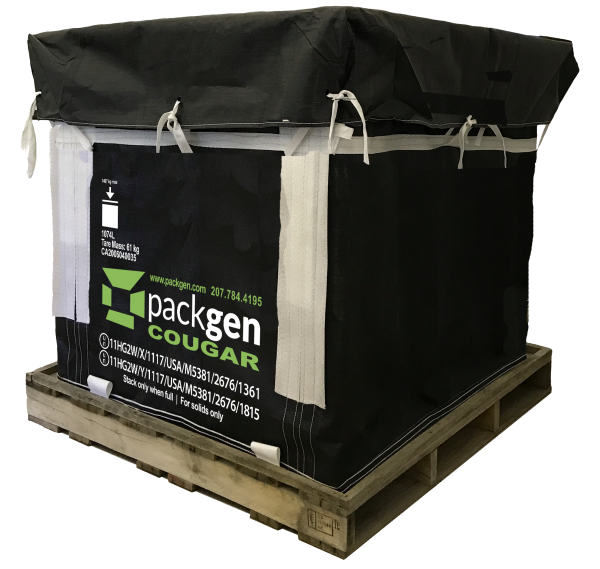

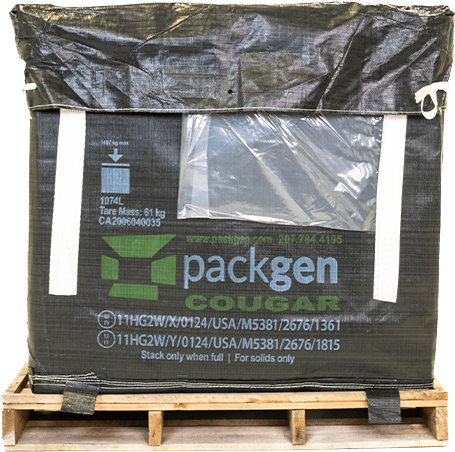

PackGen’s Cougar CATainers are the first and only collapsible composite catalyst containers designed and approved specifically for storage and transportation of both fresh and spent catalyst. These containers are approved for most types of self-heating catalyst, including precious metals, wet dumped material and more.
The Cougar 40 has a weight capacity up to 3,000 lbs of PG-I, 4,000 lbs of PG-II, and 6,000 lbs of PG-III materials, yet is lightweight and collapsible, saving you space, effort, and money.
(Label design may vary)
Cougar 40 Specifications
UN Classification
11HG2W
Dimensions
42” x 42” x 39”
Container Weight
57 lbs
Capacity
approx 40 cu ft
Lab Pack Exempt
Optional
Lift Straps
Yes
Exterior
UV treated high density woven polypropylene
Liner
Preinstalled 8-mil polyethylene high-temp/low-permeation co-extrusion
Liner Opening
Choice of open, transfer chute, or spin lid top configuration
Pallet Quantity
18
Approved To Ship
PG II & III 3000 lbs solids; IBC Code IB8
Downloadable PDF
Cougar 40 Benefits
- Replaces up to six 55-gallon drums

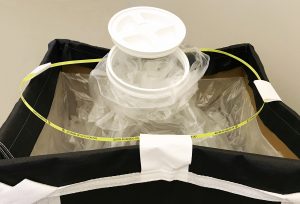

- Standard liner system and spin cover keeps oxygen out and handles fill temps up to 212 degrees F
- Continuous fiberboard sleeve scored on two opposing sides provides greater stacking and allows the container to be knocked down and lay flat
- UV Treated Polypropylene Exterior reinforced lid allows for outside storage in all weather conditions

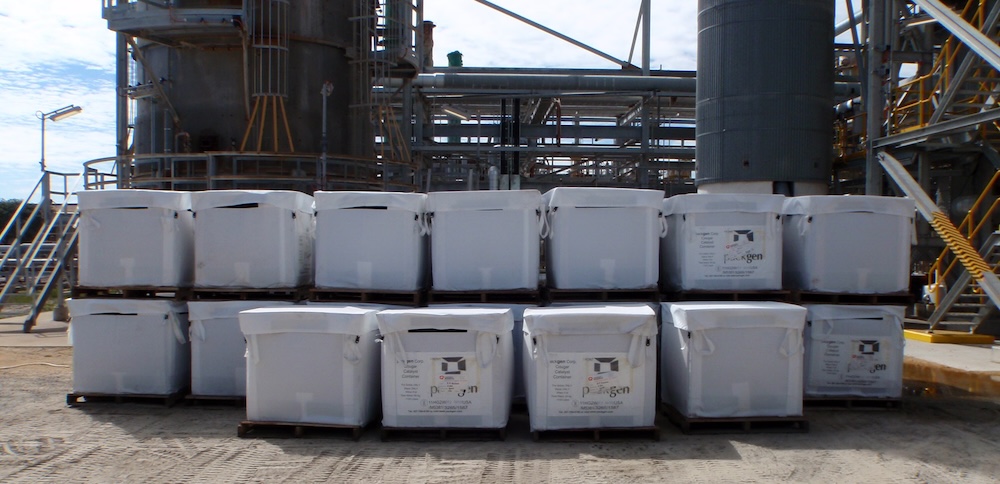

- Stack up to three high to save on finished product storage space
- Reduces packaging and transportation costs up to 48% due to light weight and collapsible design
- Green Benefit: the collapsing design reduces greenhouse pollutants and congestion on the road by over 22%
- Collapsible design saves on warehouse space and on transportation costs when compared to flow bins and drums
- Separate reinforced lid with generous overlap ensures maximum coverage
- SureFit reinforcing truss system eliminates side wall bulge and offers outstanding stackability
ROI CALCULATOR
Inbound Freight Efficiency

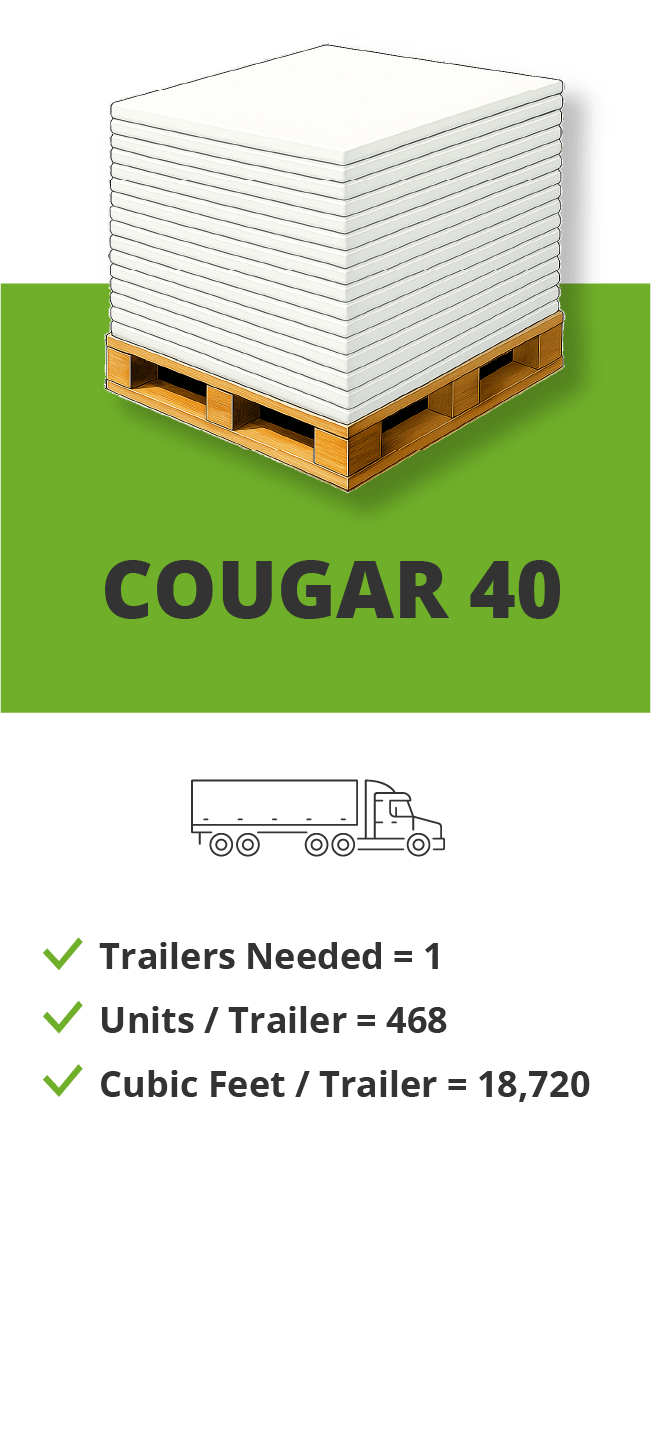

Packgen’s COUGAR 40 allows you to get an average of 11.51 times the inbound freight efficiency. Estimate how many fewer inbound trucks you’ll need—and how much you’ll save—by using PackGen’s Cougar 40 flat-shipped containers.
Results
Cougar 40
Trucks needed:
Units/truck: 468

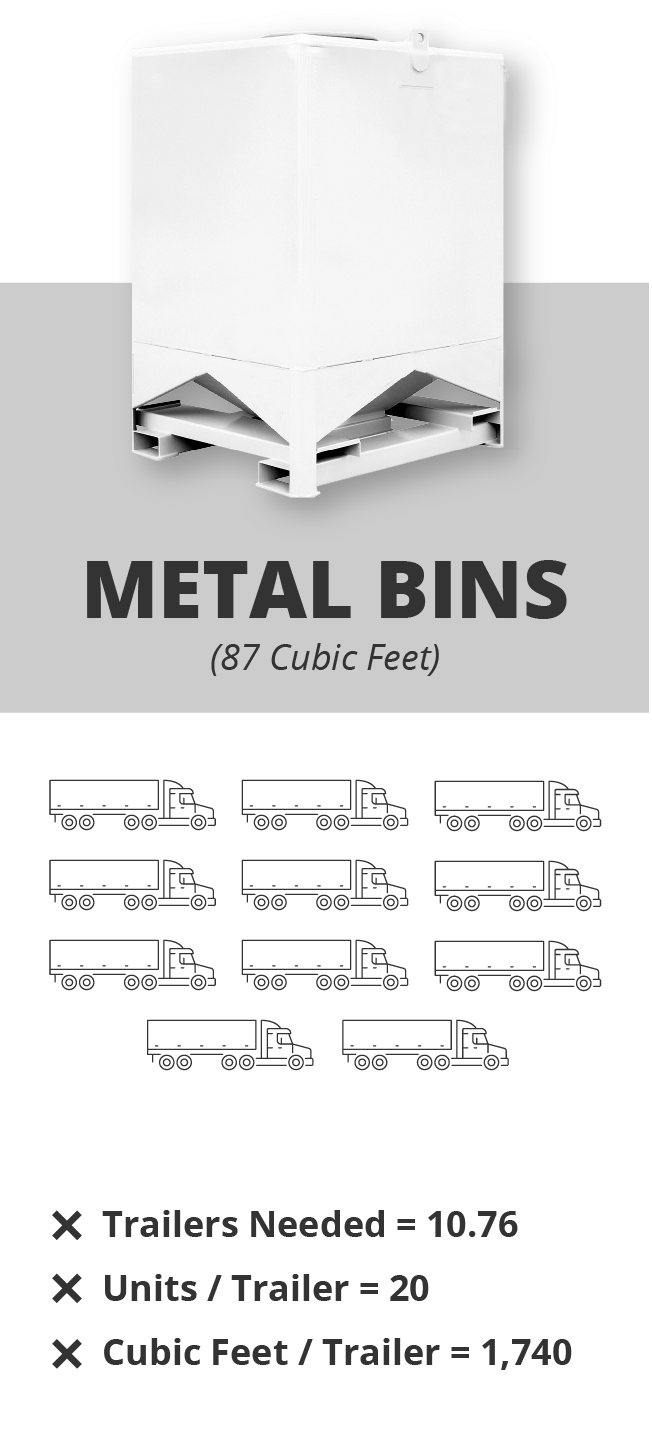

Metal Bins (87 cu ft)
Trucks needed:
Units/truck: 20

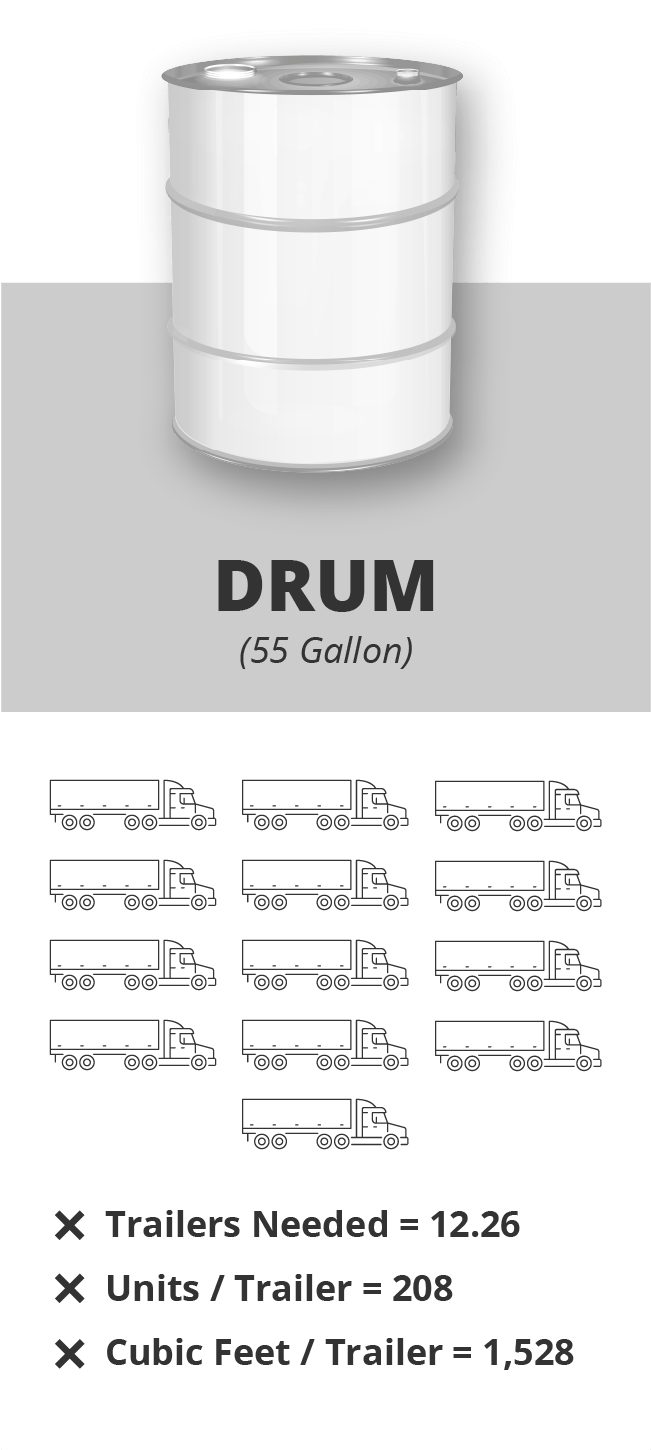

55-Gallon Drums
Trucks needed:
Units/truck: 208
Savings
Savings vs. Metal Bins
Trucks avoided:
Freight savings:
CO₂ avoided:
Savings vs. Drums
Trucks avoided:
Freight savings:
CO₂ avoided:
Notes: Calculations use PackGen inbound trailer loading metrics (units per trailer). CO₂ uses a conservative estimate of 1.6 metric tons per inbound truck. Adjust in code as needed.
Cougar 40 Inbound Freight Efficiency
