ORCA 220

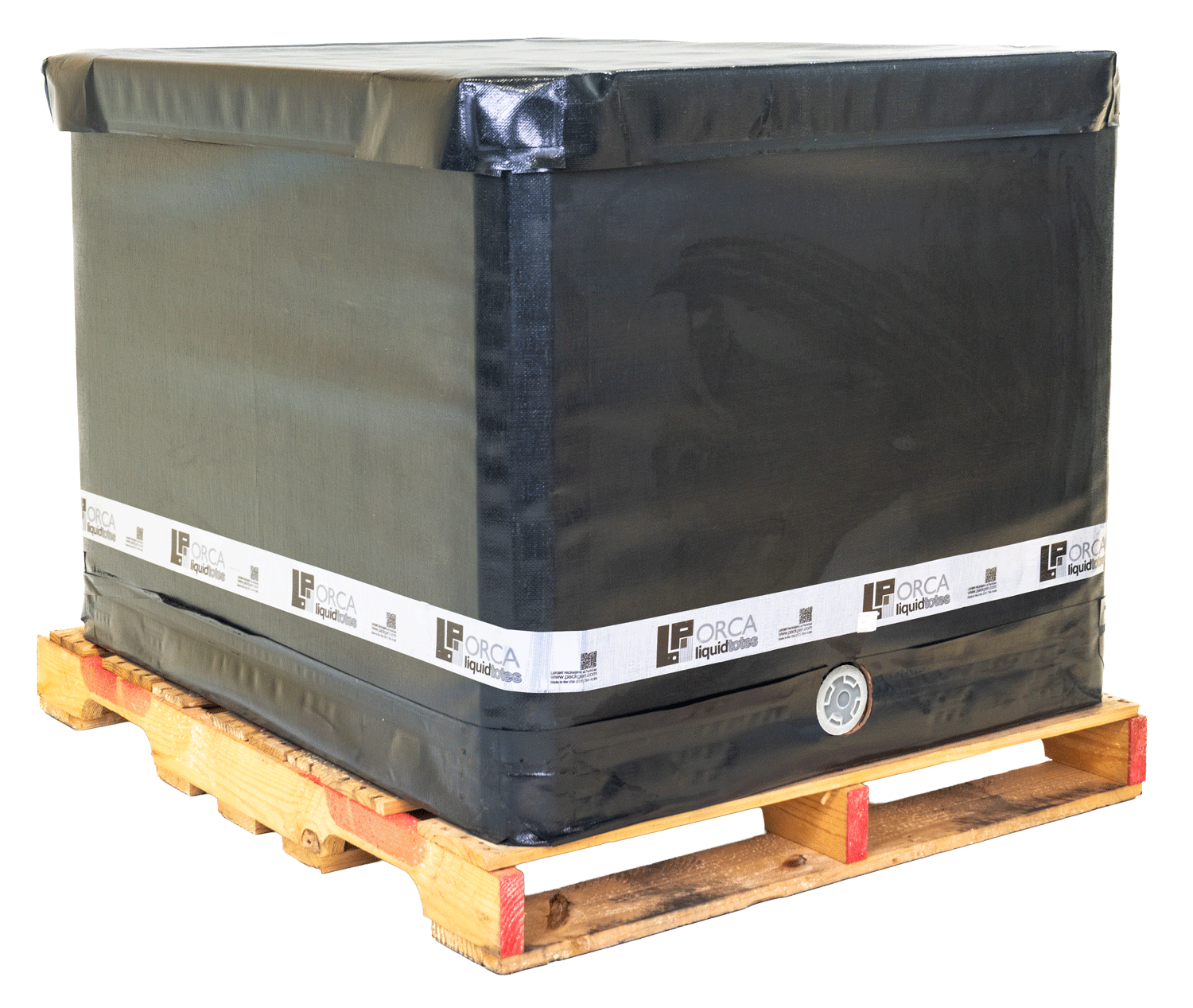

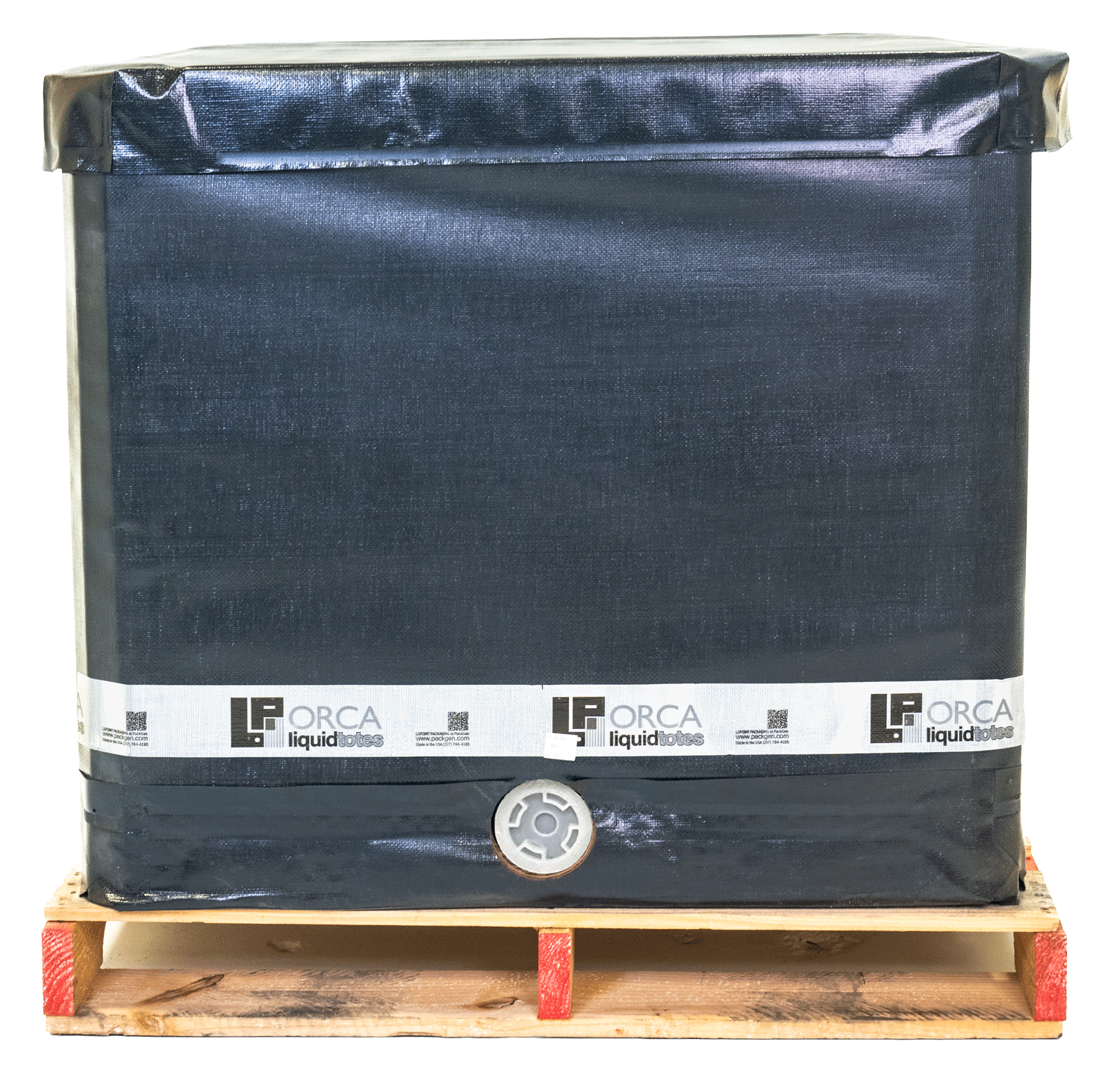

ORCA 220 Gallon Liquid Tote 48X40
Lapoint Packaging is pleased to introduce our all-new single-use ORCA liquid totes. Our pop-up style totes offer an alternative to corrugated liquid totes, bottle-in-cage, and pooled containers, and our new 220-gallon and 110-gallon totes are a great alternative to 55-gallon drums. LP ORCA Liquid Totes are proudly engineered and built in the USA.
The ORCA’s core is created from all-natural, highly renewable sugarcane byproduct. Our unique interior SuCore panels provide superior strength, while remaining lighter and greener than traditional bulk liquid packaging. Sustainability Statement.
Click the Benefits and Specs tabs below for more information on the convenient 220 gallon ORCA Liquid Tote.
ORCA 220 Gallon Specifications
Dimensions
OD: 45 1/2″L x 37 1/2″W x 32″H; ID: 43 1/4″L x 35 1/4″W x 32″H
Container Weight Without Cover
55 lbs
Container Weight With Cover
65 lbs
Container Weight With Liner Cassette
72 lbs
Pallet Size
48″ x 40″
Pallet Quantity
17
Truckload Quantity
408 Complete Units (tote, top cover, liner in cassette)
Capacity
220 gal / 833 ltr
Liner
Formfit LLDPE 2×2 3-Ply in Cassette (Custom Liners Available)
Max Working Load
1000 lbs
Stacking Limits
Quoted per application
Fill and Decant Fitments
2″ / 2″
Downloadable PDF
ORCA 220 Gallon Benefits
- Skirted UV protected and water-resistant cover over flexible
truss offers easy access for drop-in liner cassette - Woven recyclable PE exterior sheds splatters, is moisture
and UV resistant and can be cleaned without damaging
the core - Pop-up composite body requires no additional assembly
and takes only seconds to prepare for filling - Move17 totes directly to your fill line in a
single stack. No need to pre-stage. - Our direct-contact liquid liners are FDA/Halal/Kosher approved
and IMS certified - Specialty Liners Available
- Compatible with automated filling equipment
- Available with or without bottom discharge valve
LP 220 Gallon Liquid Tote
Inbound Freight Efficiency
Related Products
LP Orcas are stackable, pop-up style bulk liquid packaging offering a greener alternative to corrugated liquid totes, 275 gallon bottle-in-cage, and pooled containers.
The MOBI 275 gallon is a great alternative to Bottle-in-Cage and Pooled IBCs. The Heavy Duty MOBI can stack 4-High and is suitable for warm fills and heat blanket use.
The 110 gallon is a great alternative to 55 gallon drums. Low profile for easy loading and stacking up to 5 high. Available for liquid or solids applications.
Our lightest offering, these well-positioned containers are the perfect solution for lighter, ambient temperature liquids, stackable up to 3-high.
The LP BLUE Tomato Tote is a smart, cost-effective alternative to traditional plywood bins. It’s a multi-use container with a twist: there is no reassembly required and no belly bands to replace. Simply drop in a fresh slip sheet and liner and begin filling.
Our PreSet containers arrive erected, banded, and ready to fill. The PreSet option is available on any of our container styles and sizes. Contact your Lapoint Packaging rep for a quote.
